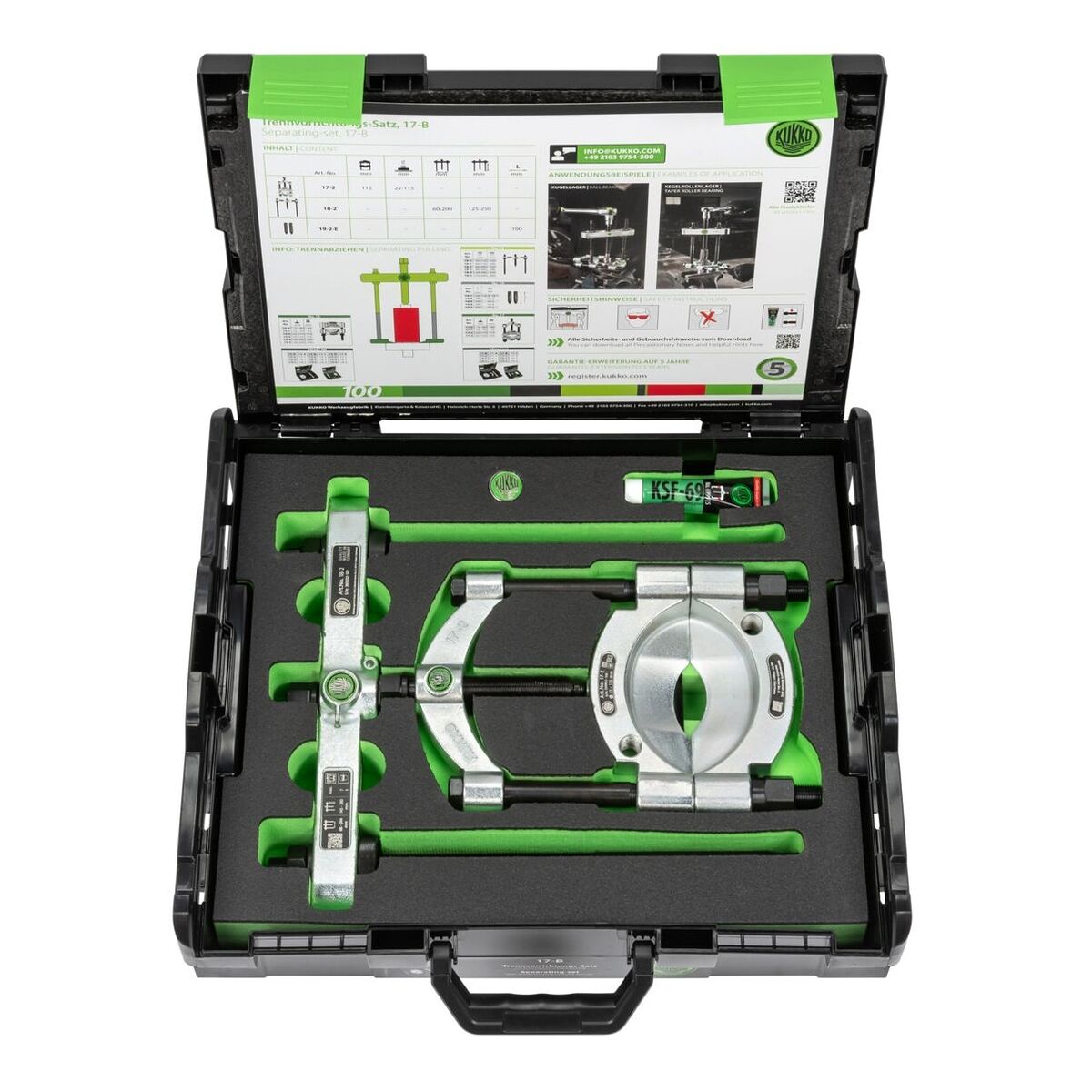

Bearing separator and extractor set, Set: B
Article no.: 884500 B
Article code:
Click to enlarge image
Click to enlarge image
Removal of a bearing with bearing separator No. 884600 and bearing extractor No. 884700.
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Optimum matching of the spindle to the shaft thanks to the 2-ended spindle tips.
- Packaging: Modular case (L-Boxx)
Product details
Technical Data
| Manufacturer's designation | K-17 | |
| Clamping range | 22 mm - 115 mm | |
| Weight including box | 8.6 kg | |
| Set | B | |
| Packaging | Modular case (L-Boxx) | |
| Type of product | Two-leg extractor |
Identification & Classification
| Article number | 884500 B | |
| EAN / GTIN | 4021176008696 | |
| Manufacturer number | 17-B | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 HILDEN, Germany, www.kukko.com |
Description
Version:
Bearing separator of high-quality tool steel.
Separator: The quick-release semicircular jaws are symmetrically tensioned by a screw. This causes the wedge-shaped jaws to insert themselves between bearings and shaft.
Extractor: Used in conjunction with the separator to extract bearings from their seating (for this the draw bolts are screwed into the threaded holes in the separation jaws).
Separator: The quick-release semicircular jaws are symmetrically tensioned by a screw. This causes the wedge-shaped jaws to insert themselves between bearings and shaft.
Extractor: Used in conjunction with the separator to extract bearings from their seating (for this the draw bolts are screwed into the threaded holes in the separation jaws).
In KUKKO L-BOXX® size 136.
Application:
For the separation of tightly wedged ball bearings, gears, etc., if the gap is too small for normal extraction arms.
