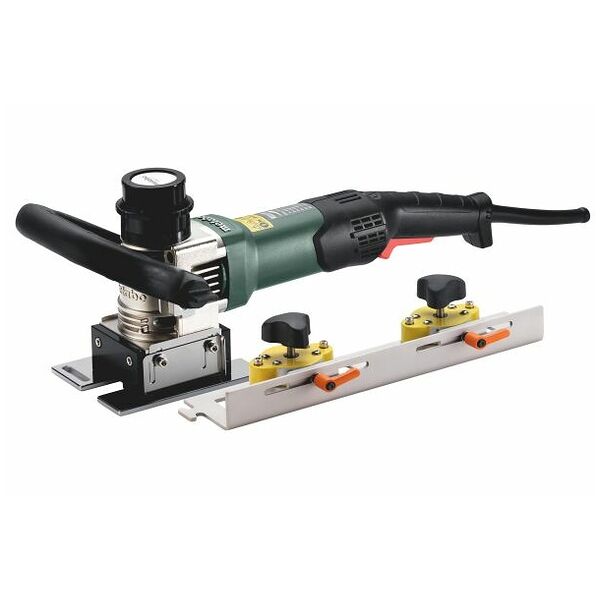

Metal face mill, Type: PFM17
Article no.: 078162 PFM17
Article code:
- Packaging: Metabox
Product details
Technical Data
| No load speed | 8,000 min-1 - 12,600 min-1 | |
| Rated power | 1,700 W | |
| Output power | 970 W | |
| Power supply | Mains-powered | |
| Increments of milling depth adjustment | 0.1 mm | |
| maximum vibration to EN | 4.1 m/s2 | |
| Noise pressure level | 91 dB(A) | |
| Sound power level (LwA) | 102 dB(A) | |
| Soft start | yes | |
| Restart block | yes | |
| Weight | 4.6 kg | |
| Cable length | 3.6 m | |
| On/Off switch | yes | |
| Nominal voltage | 230 V | |
| Packaging | Metabox | |
| Type of product | Milling machine |
Identification & Classification
| Article number | 078162 PFM17 | |
| EAN / GTIN | 4061792210349 | |
| Manufacturer number | 601789500 | |
| Manufacturer/responsible person | Metabowerke GmbH, Metabo-Allee 1, 72622 NÜRTINGEN, Germany, www.metabo.com |
Description
Version:

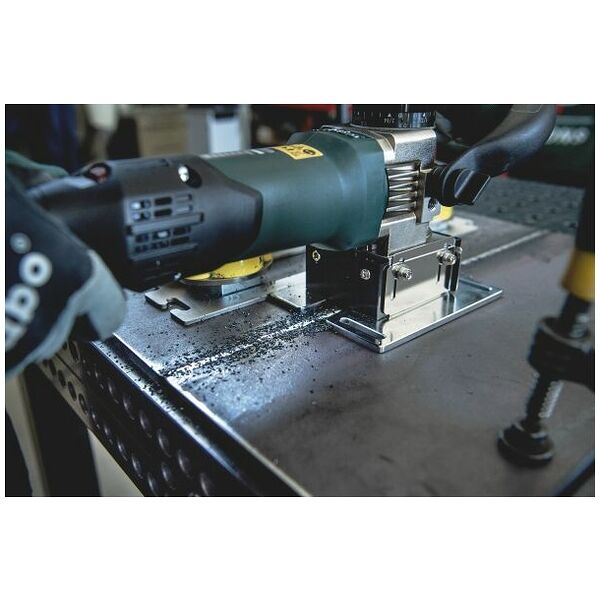

- Fast, clean removal of welding beads in a single operation with the newly developed metal face mill.
- Face milling produces small metal chips (no metal dust which is hazardous to health).

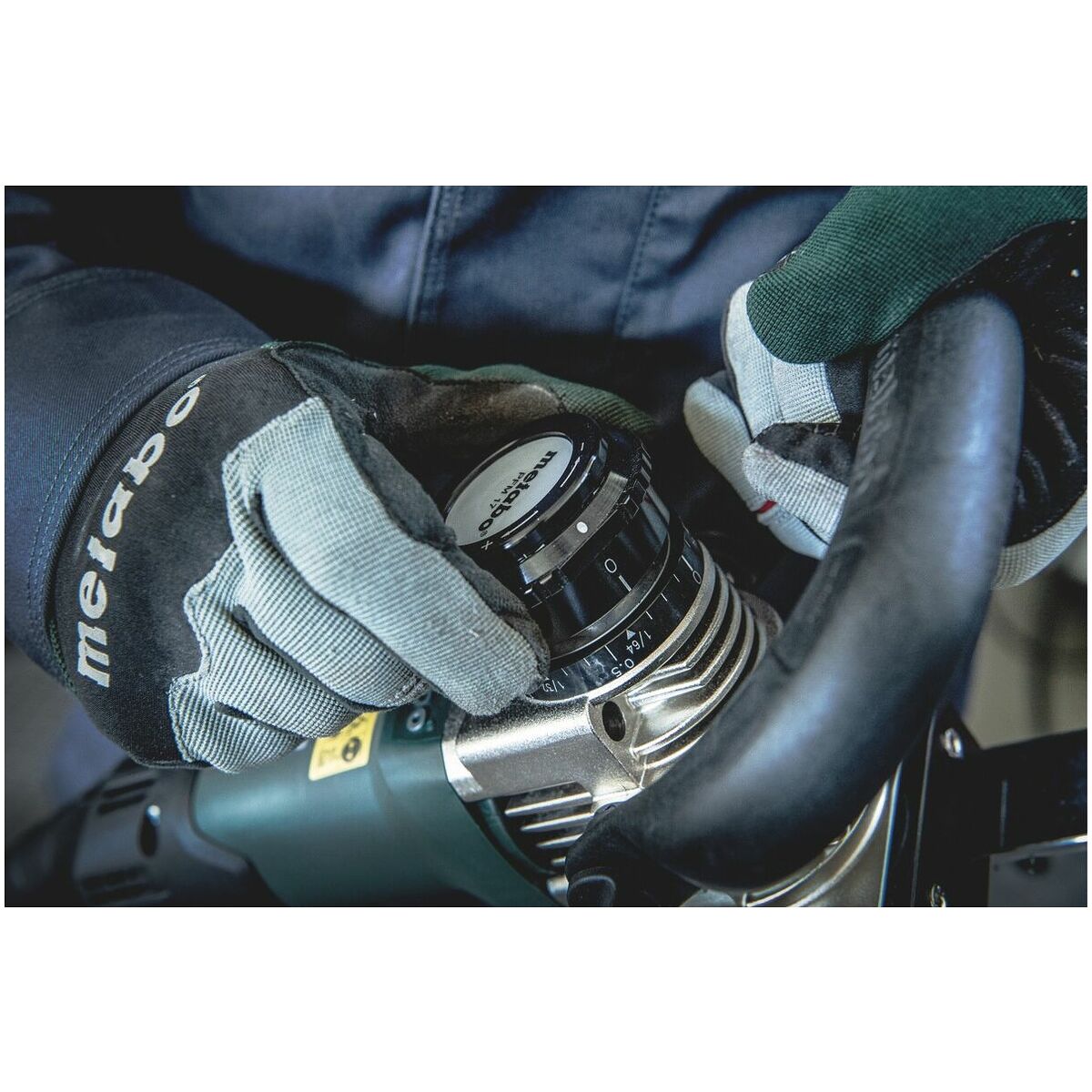

- One-touch controller: patented, tool-free milling depth adjustment in 0.1 mm increments.
- Ready to use in seconds thanks to tool-free fixed magnetic guide rail (50 cm long, expandable).

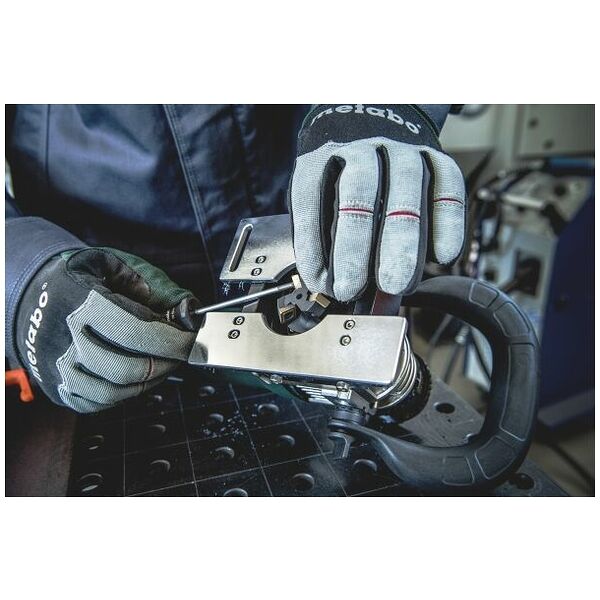

- Simple, convenient changing of the inserts on the milling head.
- Slim handle area and large, tool-free adjustable bridge handle for safe, even guidance.
- Vario-Tacho-Constamatic (VTC) full-wave electronics with adjustment wheel: for working with material-appropriate speeds that remain constant under load.
- Electronic soft start and restart protection.
- With metaBOX, the intelligent solution for transport and storage.
Supplied with:
- Magnetic guide rail (50 cm long)
- 3 universal carbide inserts
- Bridge handle
- Screwdriver for Torx screws 15
- 4 AF screwdriver with T-handle
- 10 AF open-ended spanner
- metaBOX 280 L
