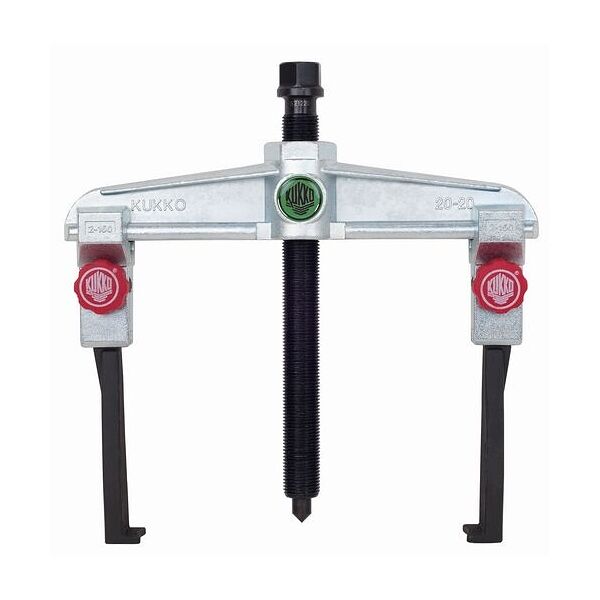

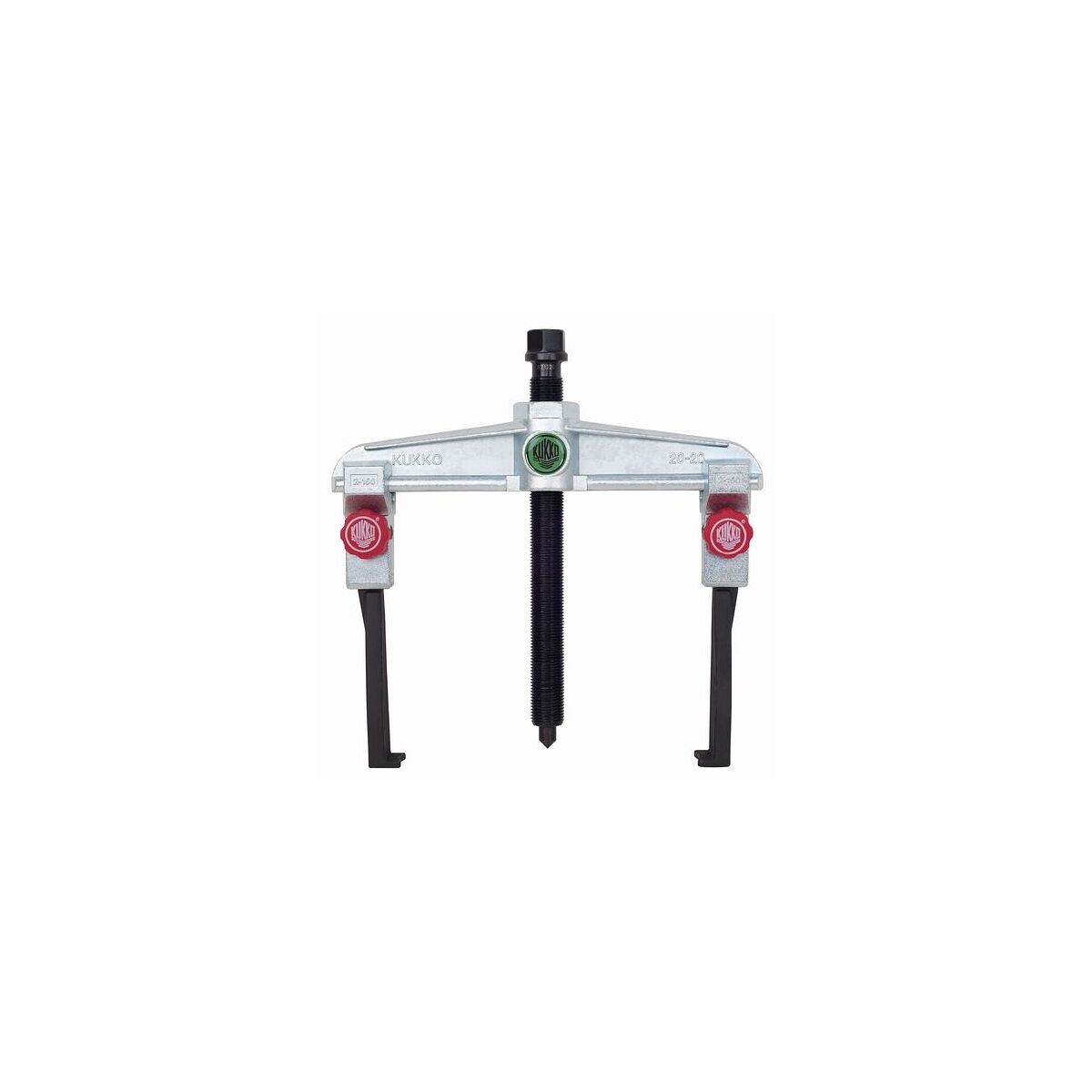

Two-leg extractor with quick adjustment, slender extractor legs, Type: 20
Article no.: 880450 20
Article code:
Click to enlarge image
Spindle nose with collar = protection against slippage.Traverse with hexagon for restraint.Quick adjustment without tools.
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Product details
Technical Data
| Manufacturer's designation | 20+S | |
| External clamping range | 40 mm - 200 mm | |
| Internal capacity | 100 mm - 260 mm | |
| Depth of reach up to | 150 mm | |
| maximum torque | 120 Nm | |
| Power | 5 t | |
| Number of hooks | 2 | |
| External hexagon drive | 22 mm | |
| Weight | 3.3 kg | |
| Type of product | Two-leg extractor |
Identification & Classification
| Article number | 880450 20 | |
| EAN / GTIN | 4021176756559 | |
| Manufacturer number | 20-20+S | |
| Manufacturer/responsible person | Kleinbongartz & Kaiser oHG, Heinrich-Hertz-Straße 5, 40704 HILDEN, Germany, www.kukko.com |
Description
Version:
With extremely slender extractor legs.
Application:
Very suitable for working in tight spaces and places where access is difficult.
