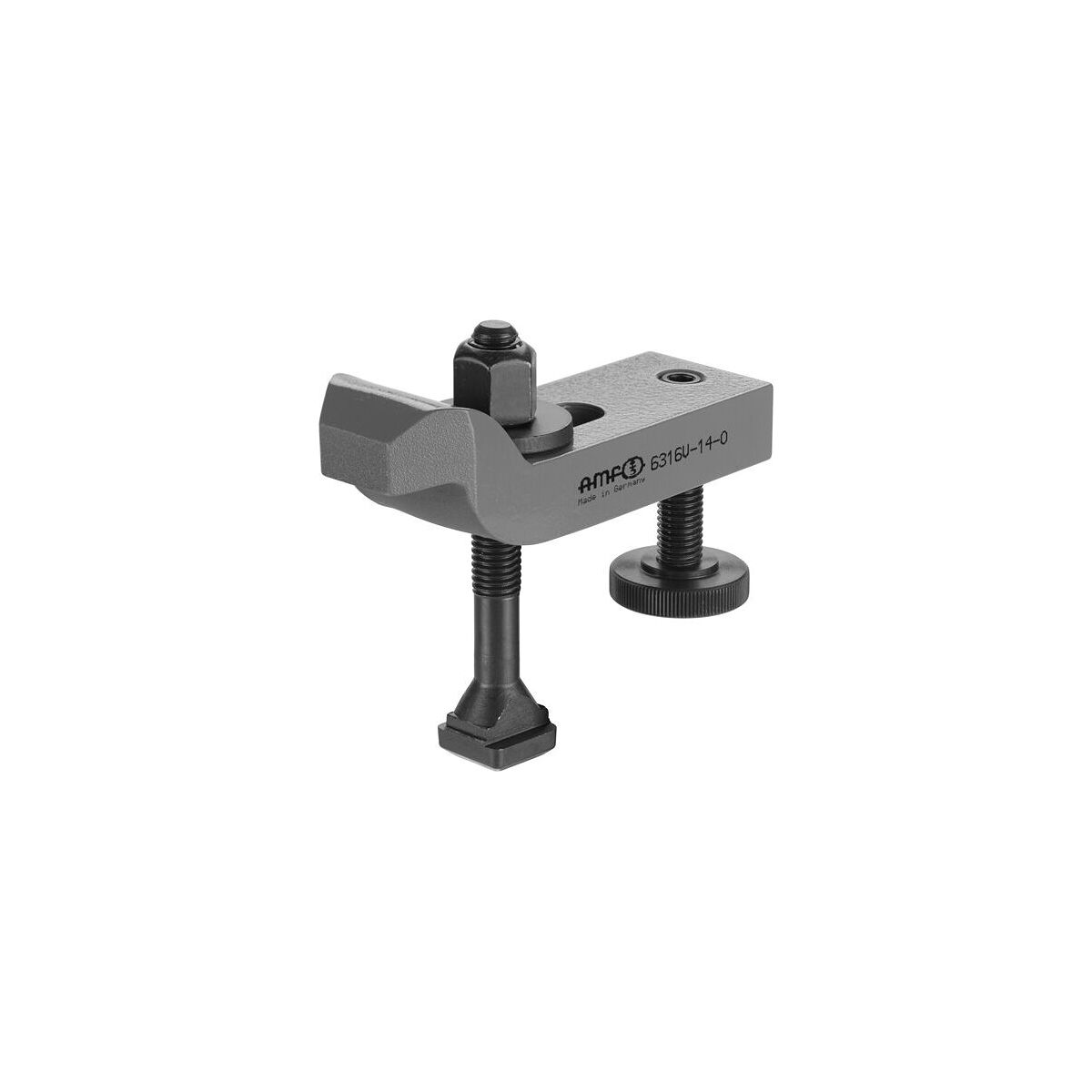

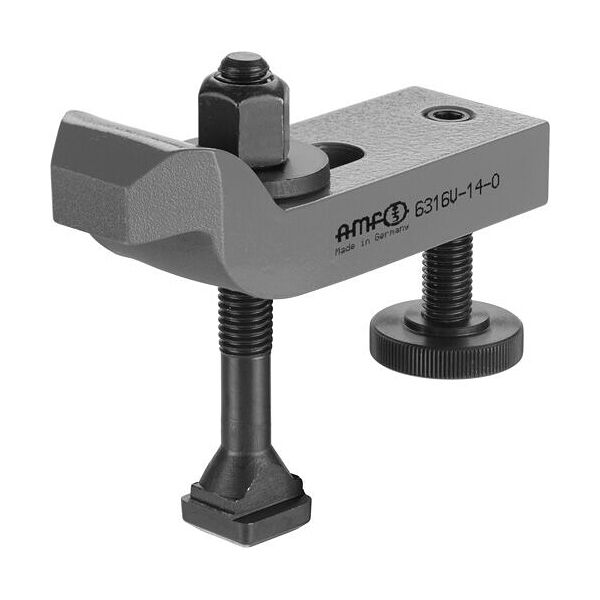

Cranked clamp with adjusting support screw, Slot width a: 16mm
Article no.: 370720 16
Article code:
Product details

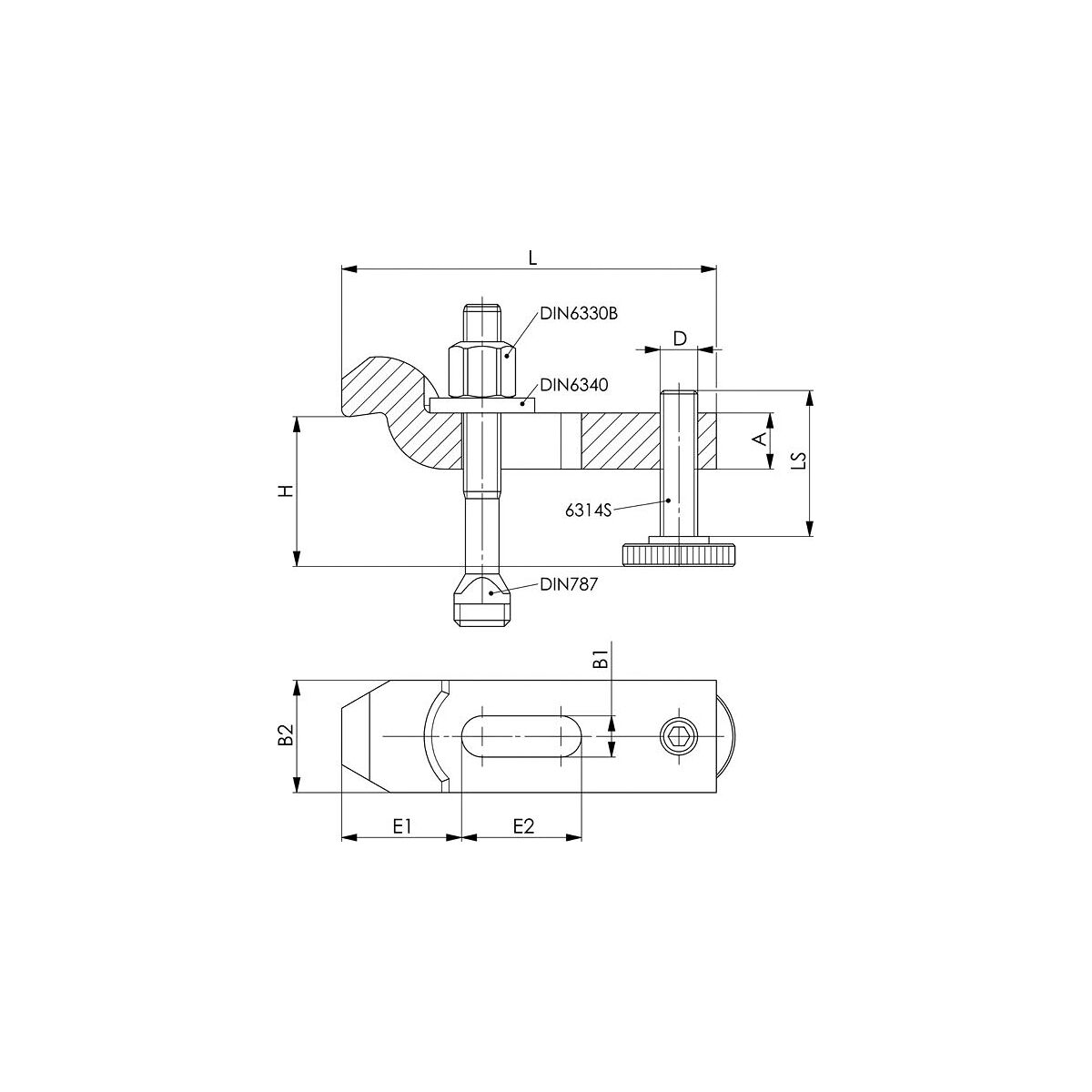

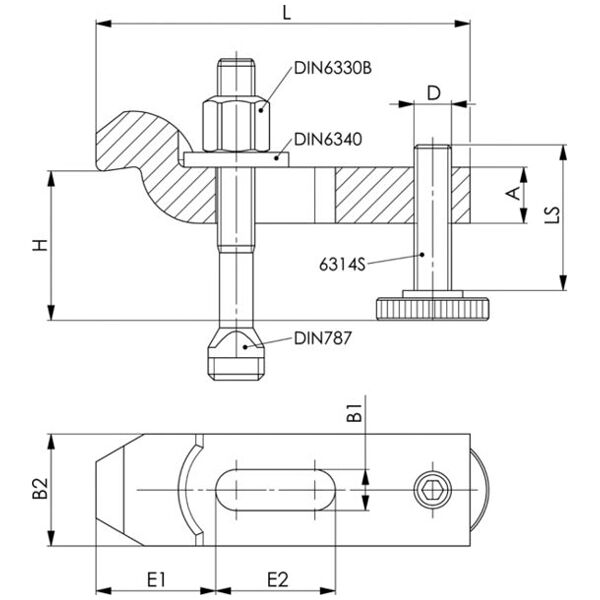

Technical Data
| Type | 6316V | |
| Slot width a | 16 mm | |
| Clamping height h | 36 mm - 71 mm | |
| Tee bolt DIN 787, No. 375300 | Size 1616125 | |
| Length L | 160 mm | |
| Width B | 18 mm | |
| Height H | 25 mm | |
| Distance from tip to slot | 51.5 mm | |
| Slot length f | 50 mm | |
| Type of product | Plain clamp |
Identification & Classification
| Article number | 370720 16 | |
| EAN / GTIN | 4020772071301 | |
| Manufacturer number | 71308 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Germany, www.amf.de |
Description
Version:
Clamp painted. Clamping height steplessly adjustable via screw (without clamping lever).
Material:
Quenched and tempered steel, screw strength 8.8 or 10.9 (depending on size!).
Supplied with:
Adjusting screw and T-bolt DIN 787 (No. 375300).
