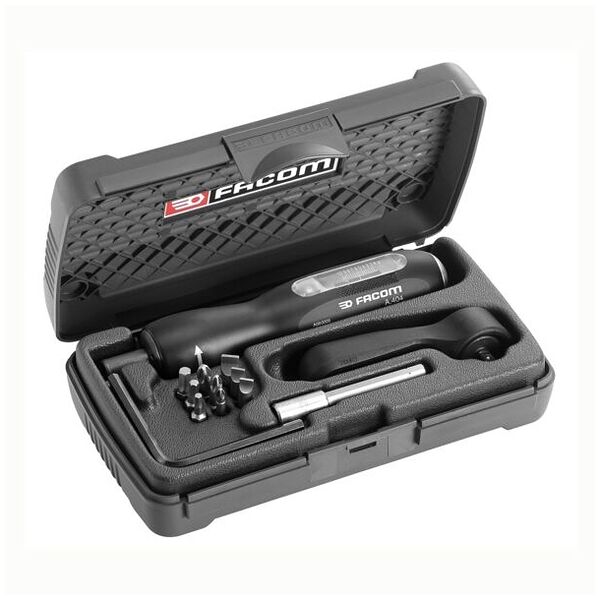

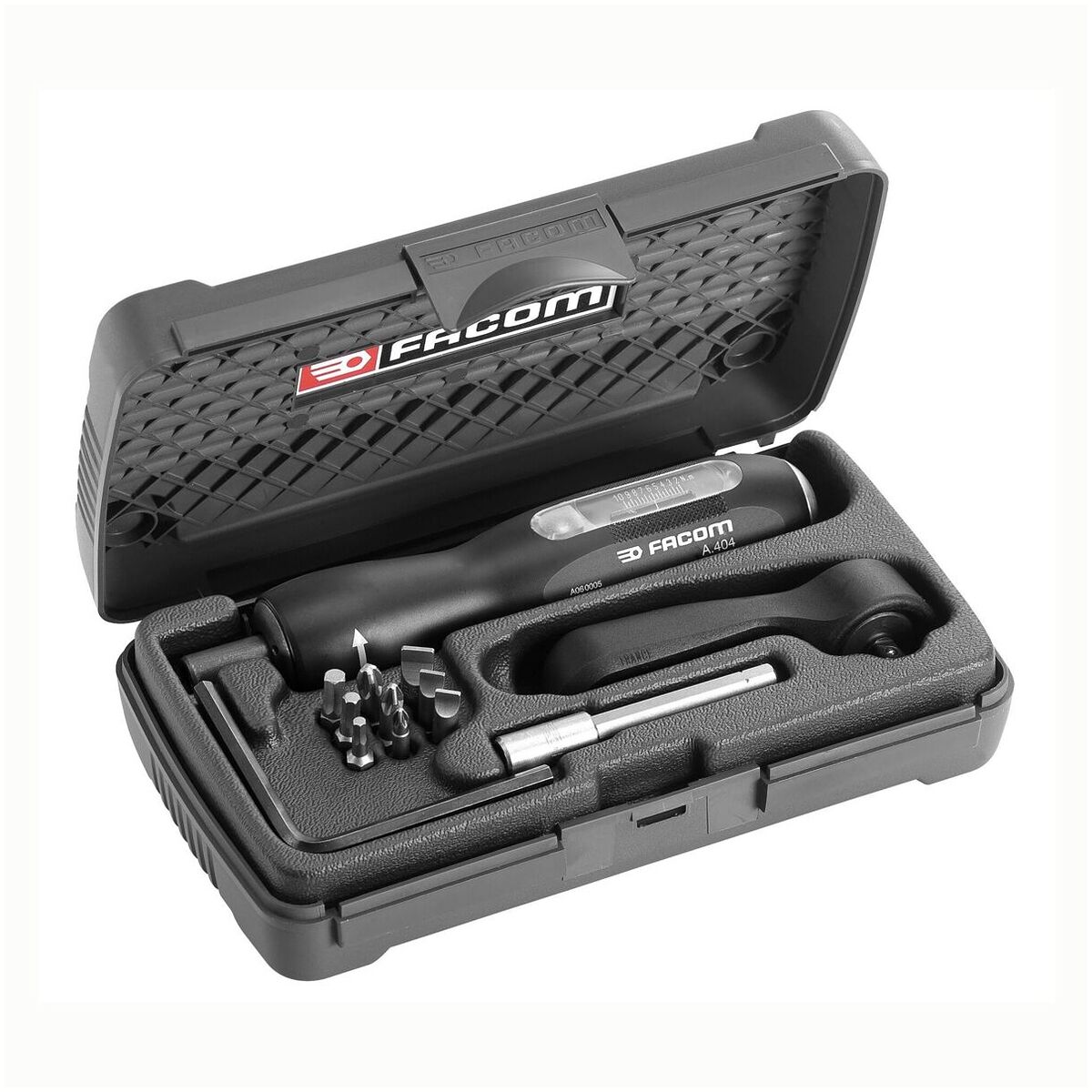

Torque screwdriver set 1000 cNm
Article no.: 659938 1000
Article code:
- Square drive: 1/4
- Direction of tightening: Right-hand tightening
- Torque measuring accuracy: ±6
- Bit socket: D 6,3
- Test certificate: Manufacturer’s test certificate
Product details
Technical Data
| maximum torque | 1.000 cNm | |
| Square drive | 1/4 in | |
| Direction of tightening | Right-hand tightening | |
| Torque measuring accuracy | ±6 % | |
| Bit socket | D 6,3 | |
| Test certificate | Manufacturer’s test certificate | |
| Display | analogue | |
| Release signalling | acoustic | |
| Trigger principle | mechanical slip clutch | |
| Connection format | Bit holder 1/4 inch | |
| Measurement technology | mechanical | |
| Data can be recorded | no | |
| Setting the trigger value | with adjustment scale | |
| Feedback | triggering | |
| Reversible reading | Nm | |
| Measurement process | Torque | |
| Adjustable trigger value | adjustable | |
| Standard | ISO 6789 | |
| Type of product | Torque screwdriver |
Identification & Classification
| Article number | 659938 1000 | |
| EAN / GTIN | 3148516763853 | |
| Manufacturer number | A.404J2 | |
| Manufacturer/responsible person | Stanley Black & Decker Deutschland GmbH, Black-&-Decker-Straße 40, 65510 IDSTEIN, Deutschland, www.facom.de |
Description
Version:
Robust torque screwdriver, adjustable with parallax-free micrometer scale. 1/4 inch internal square at the end of the handle.
Function:
When the set torque is reached the screwdriver triggers and signals clearly (audibly and perceptibly). It is then again immediately ready for use.
Standard:
Tested to DIN EN ISO 6789.
Content:
9 bits assorted: 1 pc. each of: PZ 1-2-3; hexagon 3-4-5 mm; slot-head 4.5-6.5-8
Ratchet handle: No. 659937
Bit extension: 100 mm
Torque screwdriver No. 659936: 1 pc. size 1000
Ratchet handle: No. 659937
Bit extension: 100 mm
Torque screwdriver No. 659936: 1 pc. size 1000
Note:
The guaranteed measuring accuracy of the torque is achieved only once the torque range has been calibrated to DIN EN ISO 6789.
