Rotational angle test device for torque wrenches “SmartCheck Angle”, Max. measuring range: 720°
Article no.: 654660 720
Article code:
Click to enlarge image
Click to enlarge image
Click to enlarge image
Optional documentation software available by free of charge download link:https://www.stahlwille.de/de/downloads/software-and-firmware/.
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
Click to enlarge image
- Direction of tightening: For right and left-hand tightening
- Measuring accuracy rotational angle: ±0.05
- Test certificate: Manufacturer’s test certificate
- Interface: USB interface
Product details
Technical Data
| Direction of tightening | For right and left-hand tightening | |
| Measuring accuracy rotational angle | ±0.05 degrees | |
| Test certificate | Manufacturer’s test certificate | |
| Interface | USB interface | |
| Series | SmartCheck | |
| Measuring range | 0 degrees - 720 degrees | |

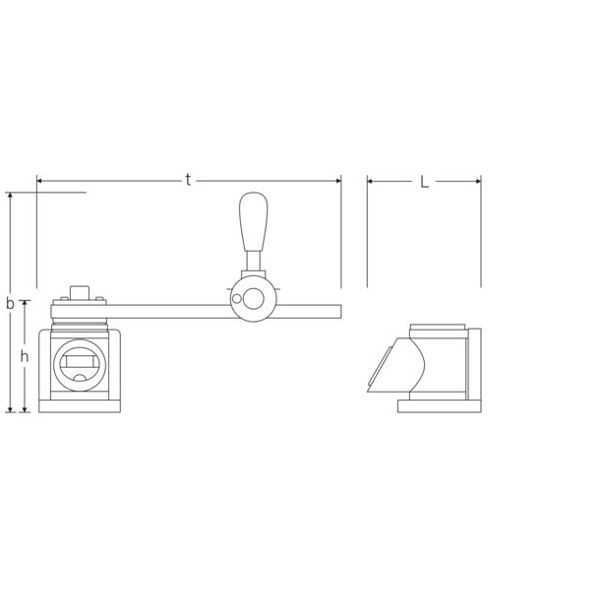

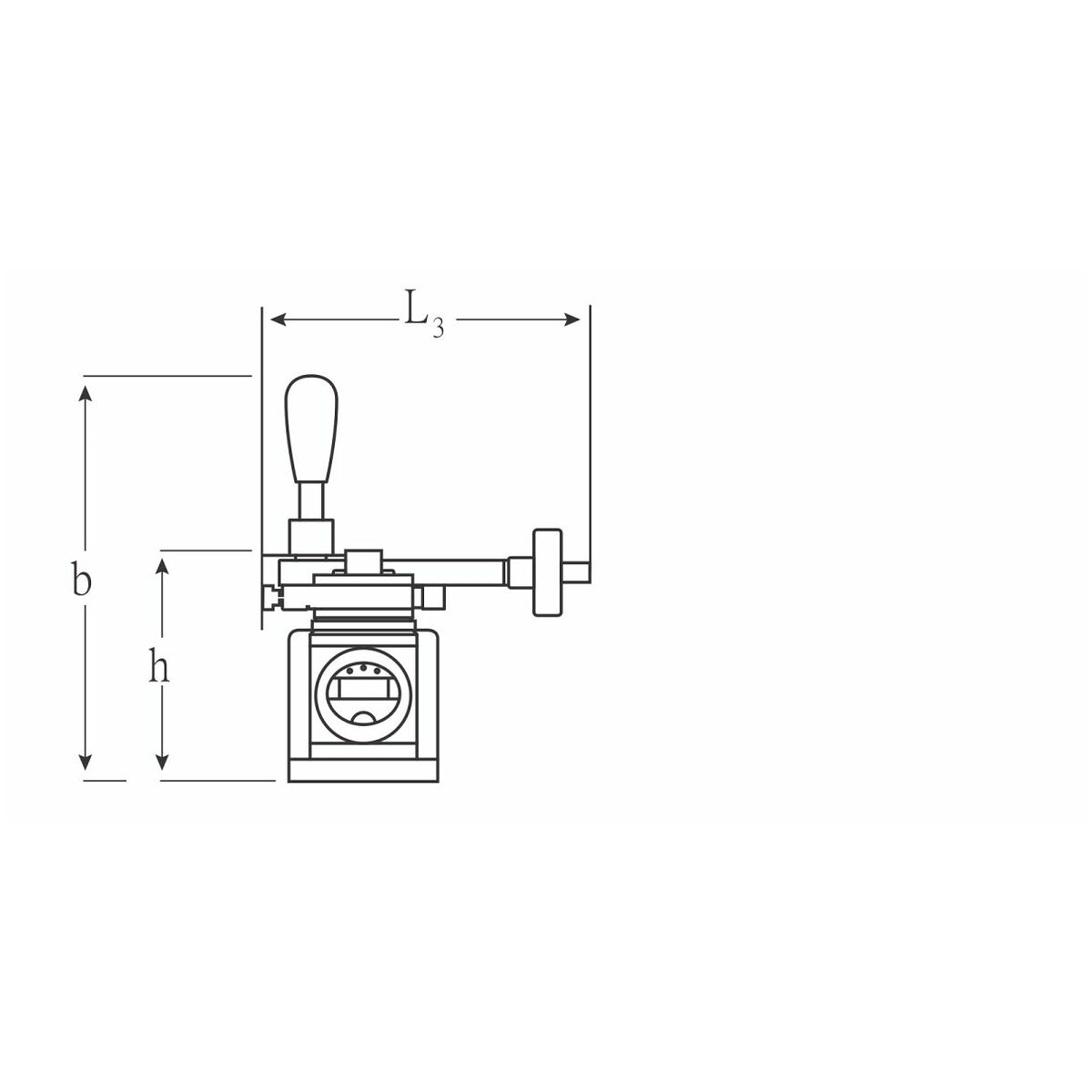

| Length L | 452 mm; 752 mm | |
| Width b | 263 mm | |
| Height h1 | 187 mm | |
| Height h2 | 327 mm | |
| Weight | 7,8 kg | |
| Square socket | 1/2 in | |
| Measured value memory | yes | |
| Power supply | Rechargeable battery-powered; Mains operated | |
| Type of product | Torque testing device |
Identification & Classification
| Article number | 654660 720 | |
| EAN / GTIN | 4018754323005 | |
| Manufacturer number | 96521400 | |
| Manufacturer/responsible person | STAHLWILLE Eduard Wille GmbH & Co. KG, Lindenallee 27, 42349 WUPPERTAL, Deutschland, www.stahlwille.de |
Description
Version:

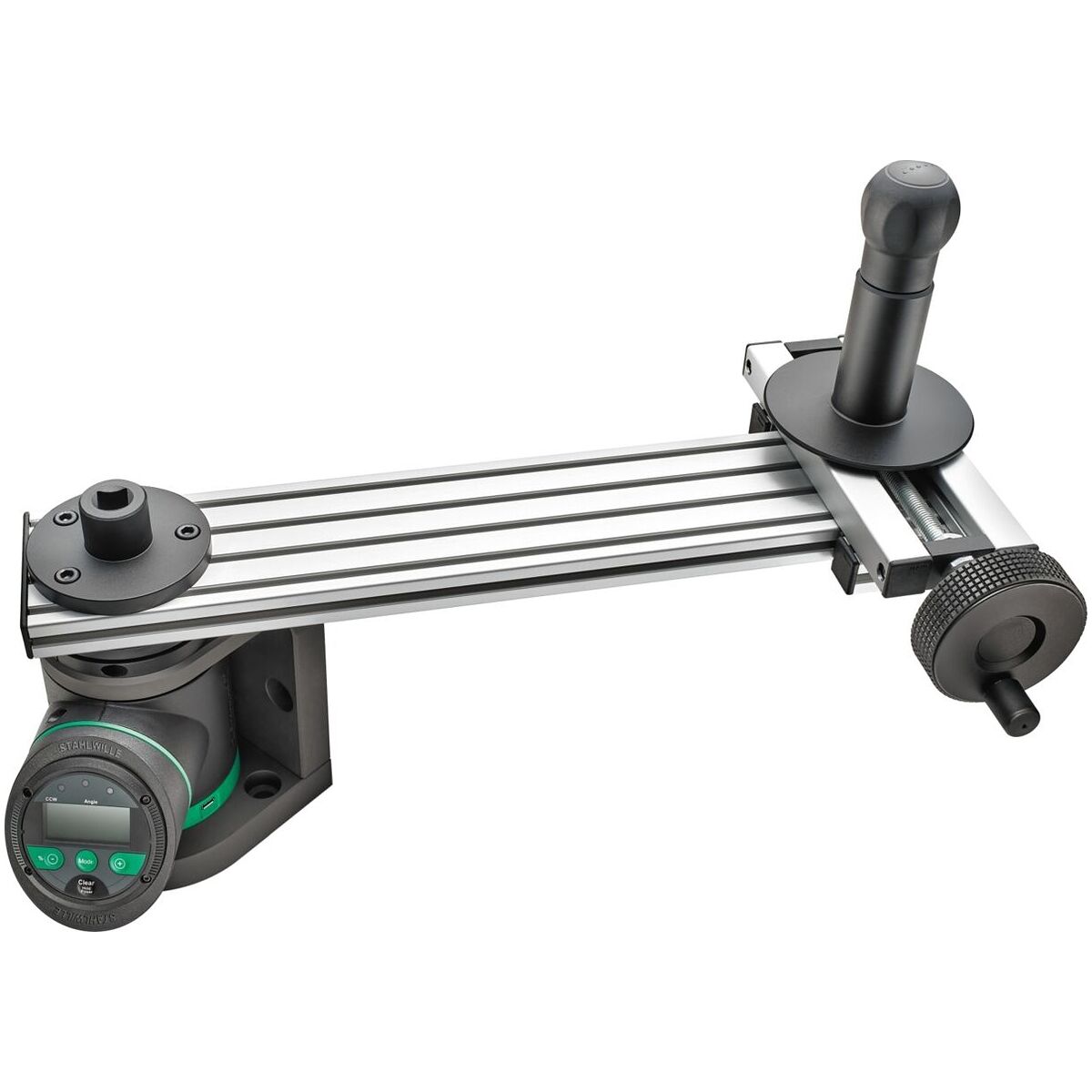

Variable and flexible rotational angle test device due to exchangeable sockets for rotational angle wrenches up to 400 Nm. Display, display bracket and base body can be rotated by 180°. The display and the membrane keypad are splash-proof and the body is made of impact-resistant plastic. The rotational arm can be locked for transport. Rotational angle measurements up to 720° with nominal value specification and evaluation of the measuring results directly at the device. USB interface for documentation of the test values. Additionally, a bi-directional interface, which permits parametrisation of new test values and the use of individual systems for control. Up to 2000 test values with a timestamp can be stored in the device. Optional documentation software available via free of charge download link.
User modes: Tracking display (Track), peak value display (Peak-Hold).
User modes: Tracking display (Track), peak value display (Peak-Hold).
Advantage:
Compact and variable rotational angle test device. Operation on power supply or batteries.
Application:

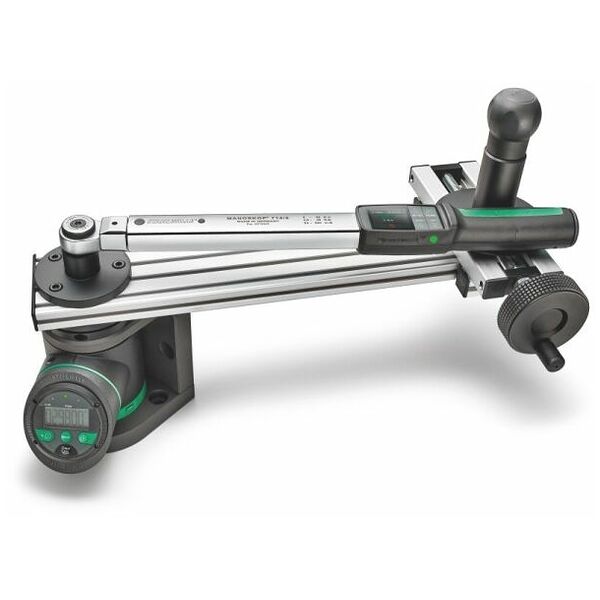

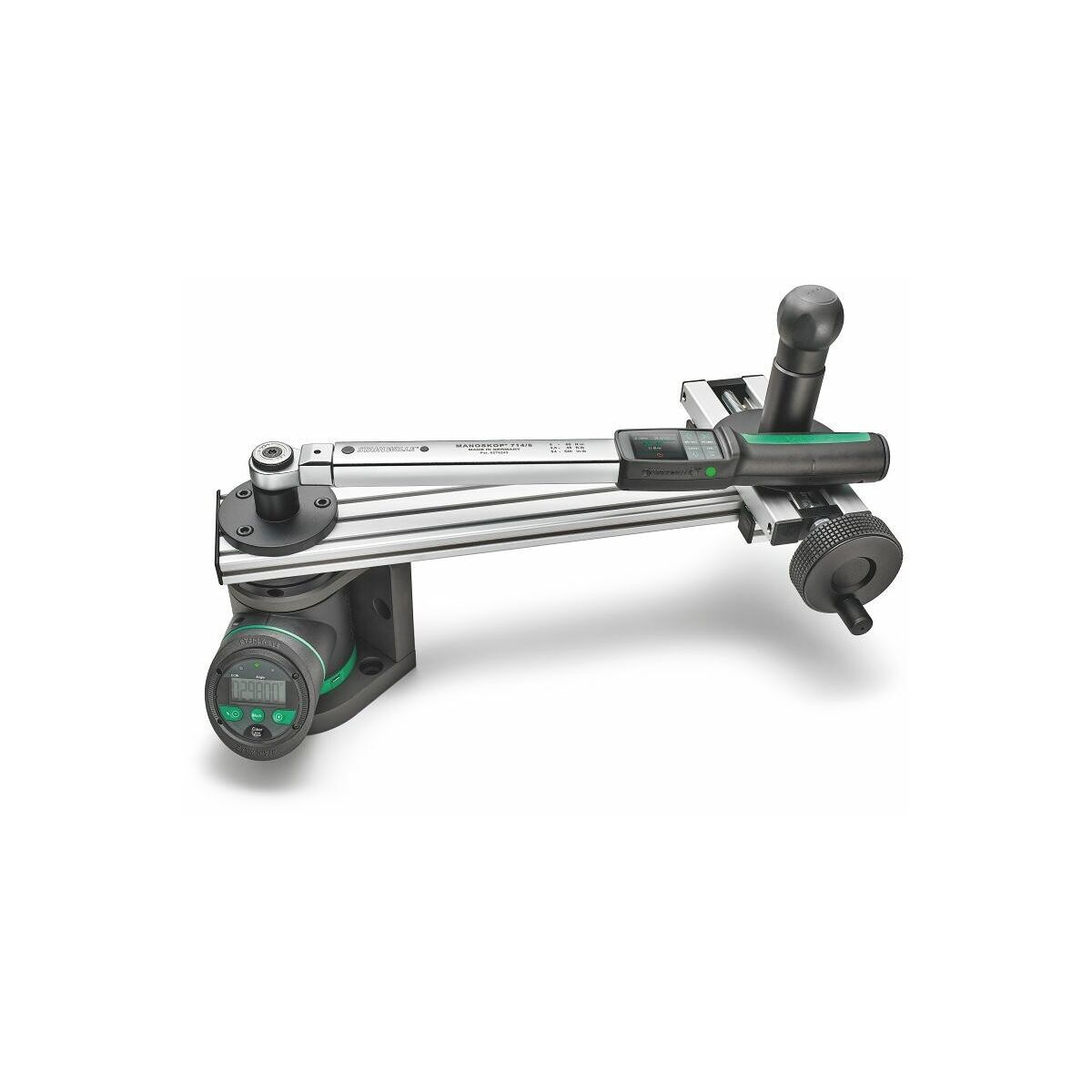

Testing rotational angle wrenches for compliance with the specified tolerance.
Supplied with:
Supplied with a USB power supply unit, reducing adapters to 1/4 inch and 3/8 inch, in a sturdy plastic case.
