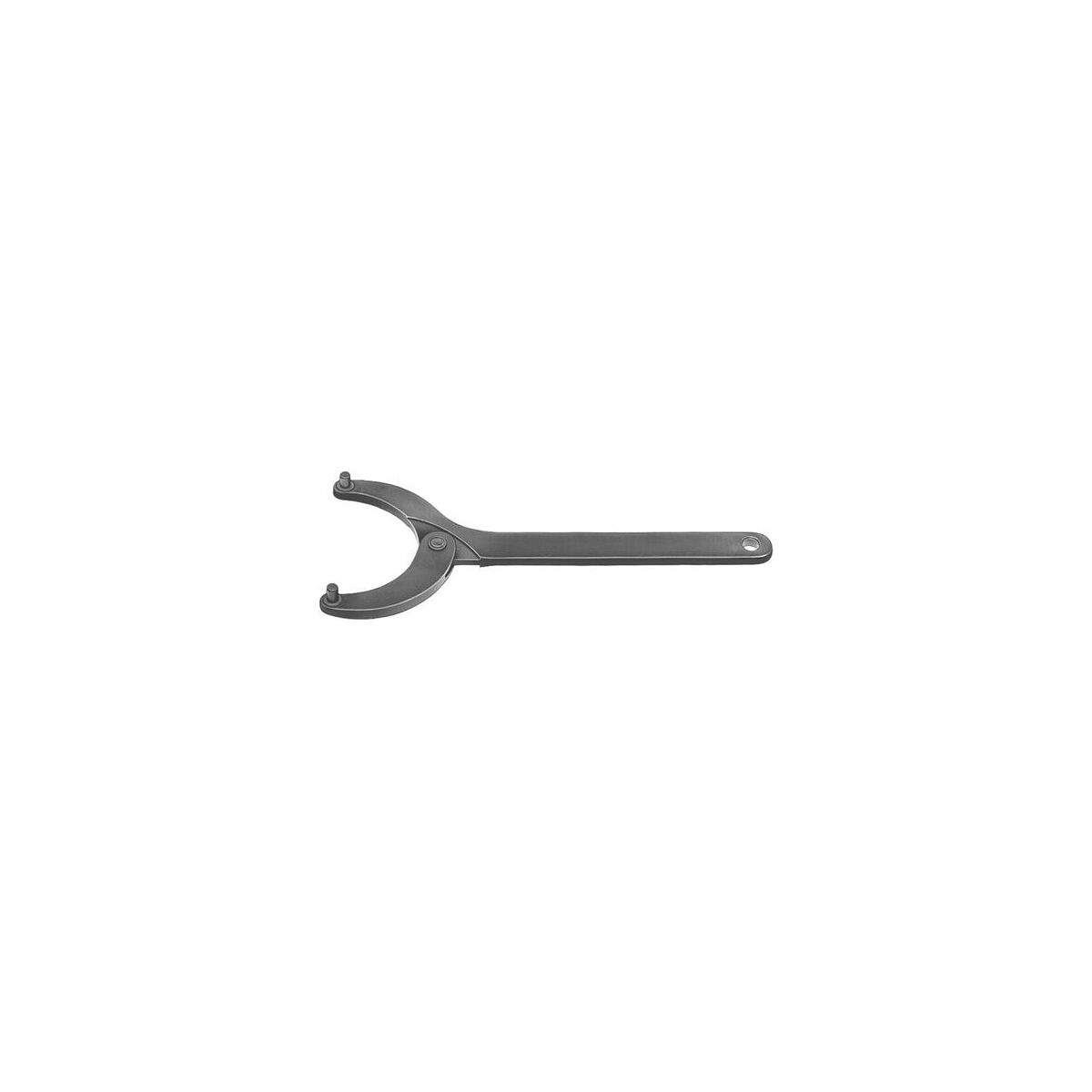

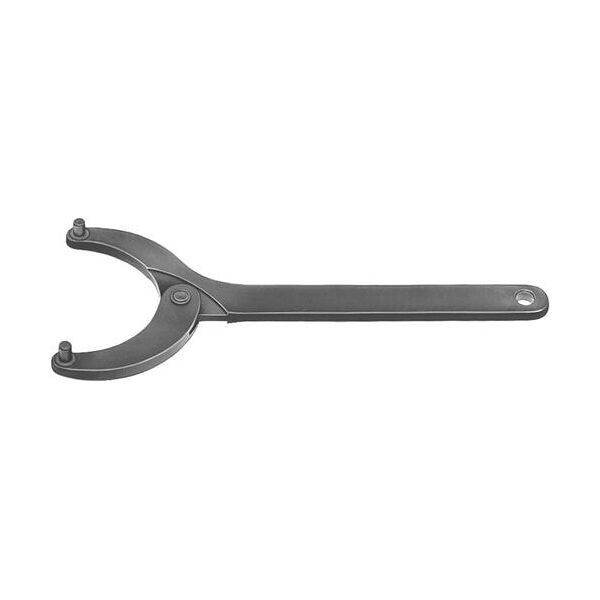

Articulated face pin wrench 200/8 mm
Article no.: 628800 200/8
Article code:
Product details
Technical Data
| Type | 764C | |
| Manufacturer's designation | 764 | |
| largest ⌀ | 200 mm | |
| Pin nominal ⌀ | 8 mm | |
| overall length | 405 mm | |
| Pin spacing adjustable a | 125 mm - 200 mm | |
| Type of product | Pin spanner |
Identification & Classification
| Article number | 628800 200/8 | |
| EAN / GTIN | 4020772041113 | |
| Manufacturer number | 41111 | |
| Manufacturer/responsible person | Andreas Maier GmbH & Co. KG, Waiblinger Straße 116, 70734 FELLBACH, Deutschland, www.amf.de |
Description
Version:
Special steel, drive head ground, annealed and burnished.
With fixed pins.
With fixed pins.
Application:
For twin hole nuts.
Note:
Pin ⌀ = pin nominal ⌀ - 0.1 mm; tolerance field h12.
