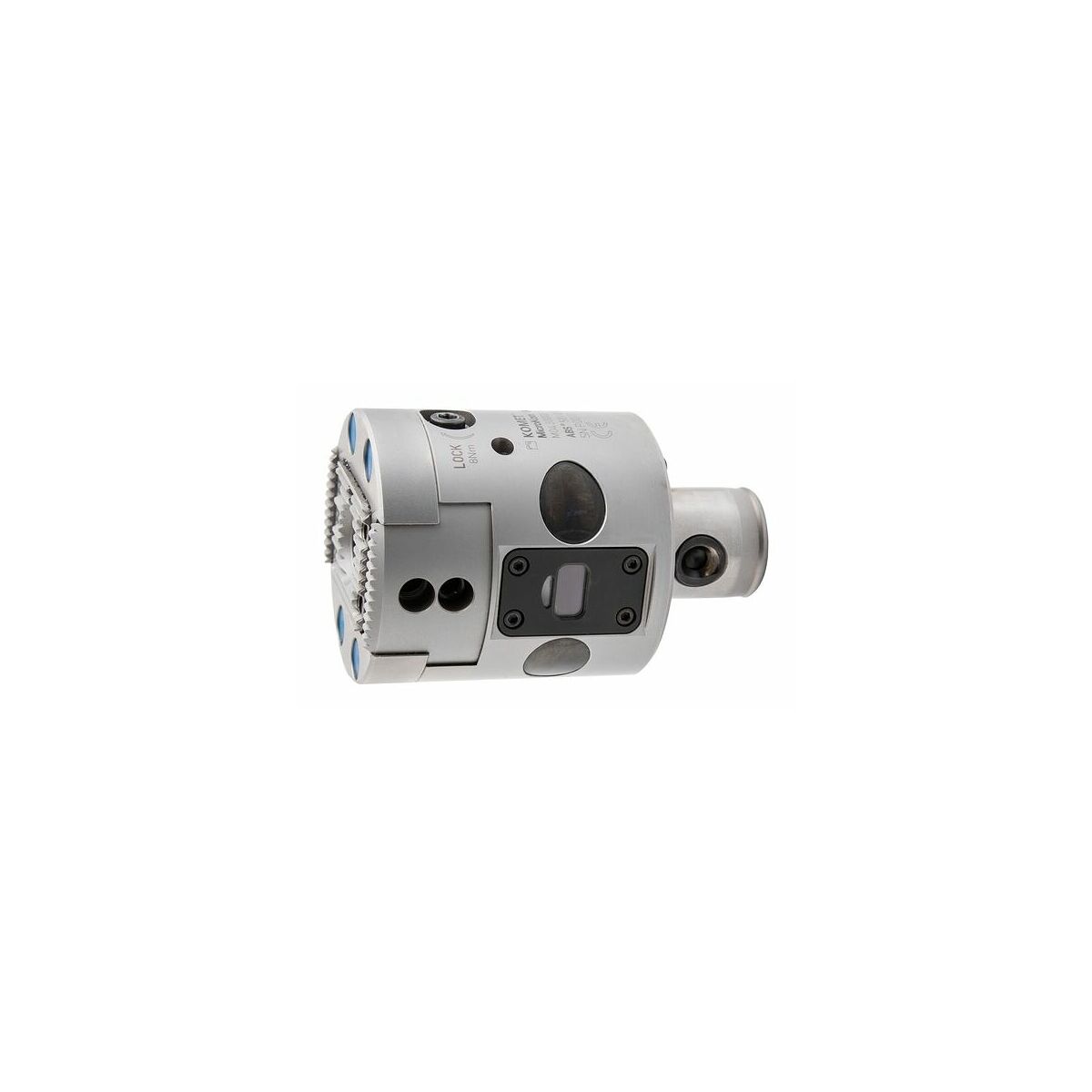

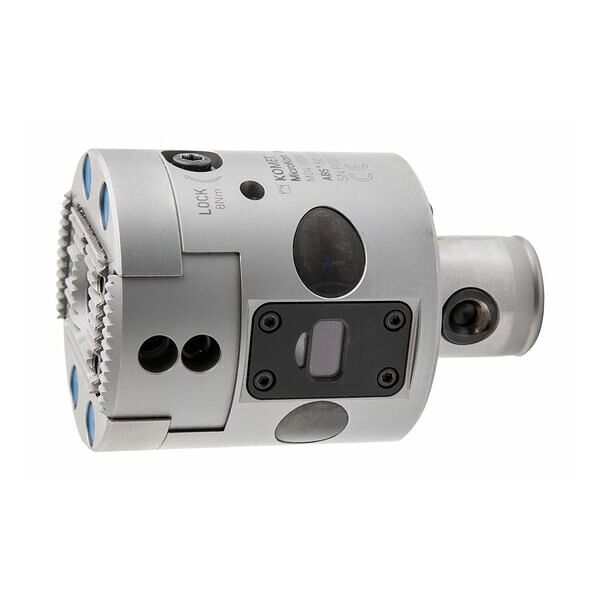

Fine boring head MicroKom® BluFlex® 2
Article no.: 238392
Article code:
- Shank: ABS
- Through-coolant: yes
Product details
Technical Data
| Shank | ABS | |
| Through-coolant | yes | |
| Boring range ⌀ | 6 mm - 125 mm | |
| Type of product | Boring tool |
Identification & Classification
| Article number | 238392 | |
| EAN / GTIN | 4047109280205 | |
| Manufacturer number | 6284016097 | |
| Manufacturer/responsible person | Ceratizit Besigheim GmbH, Zeppelinstraße 3, 74354 BESIGHEIM, Deutschland, www.kometgroup.com |
Description
Version:
- Linearity range: -0.2 to +4.4 mm (-0.0079 to 0.1732 inch) on the ⌀.
- µ-precise display resolution: 0.001 mm on the ⌀.
- Internal hexagon wrench allows radial adjustment and clamping of the micro-adjustable drilling head.
- Modern high-contrast OLED display directly at the micro-adjustable drilling head.
- The display can be rotated through 180°.
- Easy to operate directly at the touch display.
- Additional Bluetooth® low energy interface for easy display on a commercially-available smartphone with Android™ or IOS 7.
- Higher speeds thanks to integral partial balancing.
- Very sensitive adjustment permits precise infeed.
- Absolute travel measuring system – the absolute and relative slide position is output every time the device is switched on.
- Universal ABS® port.
- Battery easily replaceable.
- 1: 1 compatible with the available variations of the previous system.
