Line maintenance set 13214a WW 163pcs

Article no.: 97830802
Line maintenance set 13214a WW 163pcs
Click to enlarge image
Line maintenance set 13214a WW 163pcs
Click to enlarge image
Line maintenance set 13214a WW 163pcs
Click to enlarge image
Line maintenance set 13214a WW 163pcs
Click to enlarge image
Line maintenance set 13214a WW 163pcs
Click to enlarge image
Price per 1 Piece
plus VAT at the current rate Prices plus delivery costs
Individual prices for business customers after login.
on request
Estimated delivery time: 1-2 weeks
0 pieces in stock

Select article variation and quantity

Unit price incl. VAT

Availability

Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us. Info

Add to wishlist

Share this product

or copy this link

Product details

Technical Data

Version with tool kit
Type of product Rigid foam inlay

Identification & Classification

Article number 97830802
EAN / GTIN 4018754196388
Manufacturer number 97830802
L-Number L60010 4204
Manufacturer/responsible person STAHLWILLE Eduard Wille GmbH & Co. KG, Lindenallee 27, 42349 WUPPERTAL, Germany, www.stahlwille.de

Description

Description:

  • For maintenance on aeroplanes and helicopters.
Features:
  • for the maintenance of aeroplanes and helicopters
  • 4 x 3/3 inserts for 4 drawers (no. 98 PRO for 2 drawers)
  • Suitable for workbenches no. WB 621, WB 625; Workshop trolley no. 93, 95 PRO, 98 PRO
  • Safely integrated into the Tool Control System (TCS)< modular tool insert system

Feature:

  • Number of tools: 163
  • Height mm (h): 177 mm
  • Length mm (L): 540 mm
  • Width mm (b): 355 mm

Supplied with:

Contents 163-parts:

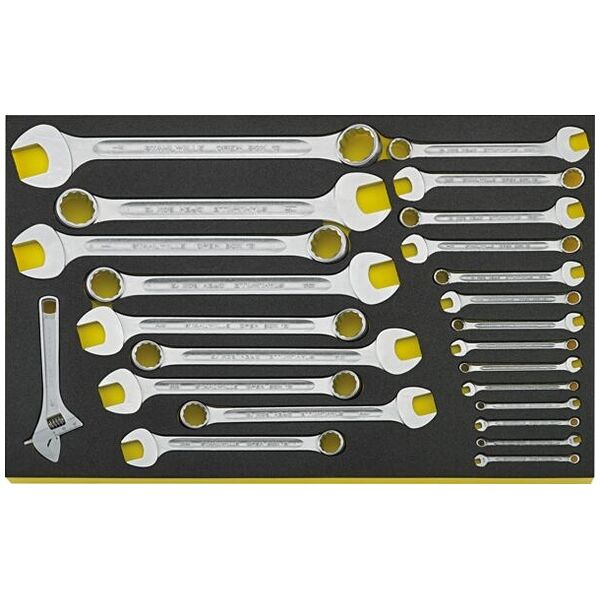

96830885
  • 23 Combination spanner No. 13a: 3/16; 13/64; 7/32; 15/64; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16; 19/32; 5/8; 11/16; 3/4; 25/32; 13/16; 7/8; 15/16; 1; 1 1/16; 1 1/8″
  • 1 open-end spanner, adjustable No. 4025: max. 24 mm
96830886
  • 10 Sockets with double hexagon 1/4″ No. 40aD.: 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16 inch
  • 10 sockets, long, with double hexagon 1/4″ No. 40aDL.: 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16 inch
  • 5 articulated sockets with double hexagon 1/4″ No. 402a: 1/4; 5/16; 3/8; 7/16; 1/2 inch
  • 1 QuickRelease universal joint 1/4″ No. 407QR.: L. 38 mm
  • 2 QuickRelease extensions 1/4″ No. 408QR.: L. 55; 150 mm
  • 1 enlarger No. 409M.: 1/4 to 3/8″
  • 1 1/4″ plug-in handle No. 400N: L. 150 mm
  • 1 QuickRelease fine-tooth ratchet 1/4″ No. 415QR. N: L. 117 mm
  • 1 bit fine-tooth ratchet 1/4″ No. 415SGB N: L. 117 mm
  • 1 bit holder 1/4″ No. 412: L. 25 mm
  • 8 Sockets with double hexagon 3/8″ No. 45a: 1/2; 9/16; 19/32; 5/8; 11/16; 3/4; 15/16; 1”
  • 4 sockets, long, with double hexagon 3/8″ No. 46a: 5/8; 11/16; 3/4; 7/8 inch
  • 2 QuickRelease extensions 3/8″ No. 426QR.: L. 75; 240 mm
  • 1 QuickRelease universal joint 3/8″ No. 428QR.: L. 46 mm
  • 1 reducer No. 431: 3/8 to 1/4″
  • 1 enlarger No. 432M.: 3/8 to 1/2″
  • 1 QuickRelease crank 3/8″ No. 453QR.: L. 408 mm
  • 1 QuickRelease fine-tooth ratchet 3/8″ No. 435QR N: L. 193 mm
  • 1 Bit holder 3/8″ No. 443: L. 32 mm
  • 1 bit ratchet screwdriver No. 4008: L. 250 mm
  • 6 Ratchet ring spanner No. 17a: 1/4; 5/16; 3/8; 7/16; 1/2; 9/16 inch
  • 1 bit box No. 1208: 1 quick-release holder 1/4″ / L. 25 mm: SL4,5;6.5;8 mm / PH1;2;3 (2x) / T6;15;20 / T-SET 4;6;8;10 (2x) / INHEX 5/64;9/64;1/8;3/16;5/32;7/64;3/32;7/32″ / adapter 1/4″ 4KT/6KT / 30-piece
96830887
  • 2 slot-head screwdriver No. 4622: 1.0 x 5.5 x 100; 1.2 x 8.0 x 150 mm
  • 3 cross-head screwdriver No. 4632: PH1; PH2; PH3
  • 1 Combination pliers No. 6700: L. 160 mm
  • 1 telephone pliers No. 6731: L. 200 mm
  • 1 pair of gripping pliers No. 6564: L. 175 mm
  • 1 water pump pliers No. 6572: L. 240 mm
  • 1 wire-twisting pliers No. 6575: L. 230 mm
  • 1 Electronics side cutter No. 6707: L. 115 mm
  • 1 hook tool No. 13001: angled 45°
  • 1 pin puller No. 13009: L. 265 mm
  • 1 LED torch No. 13128: 320 lm
  • 1 round awl No. 10758-2K.: L. 175 mm
  • 1 Ball-headed hexagon socket screwdriver set No. 10767a/13: 0.050; 1/16; 5/64; 3/32; 7/64; 1/8; 9/64; 5/32; 3/16; 7/32; 1/4; 5/16; 3/8 inch

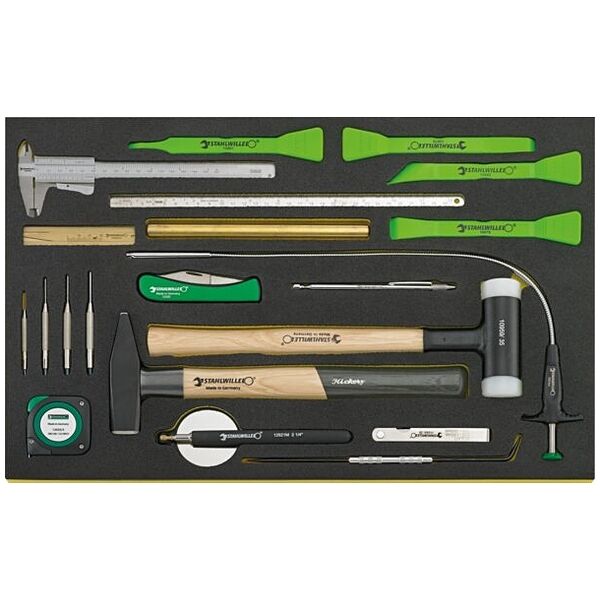

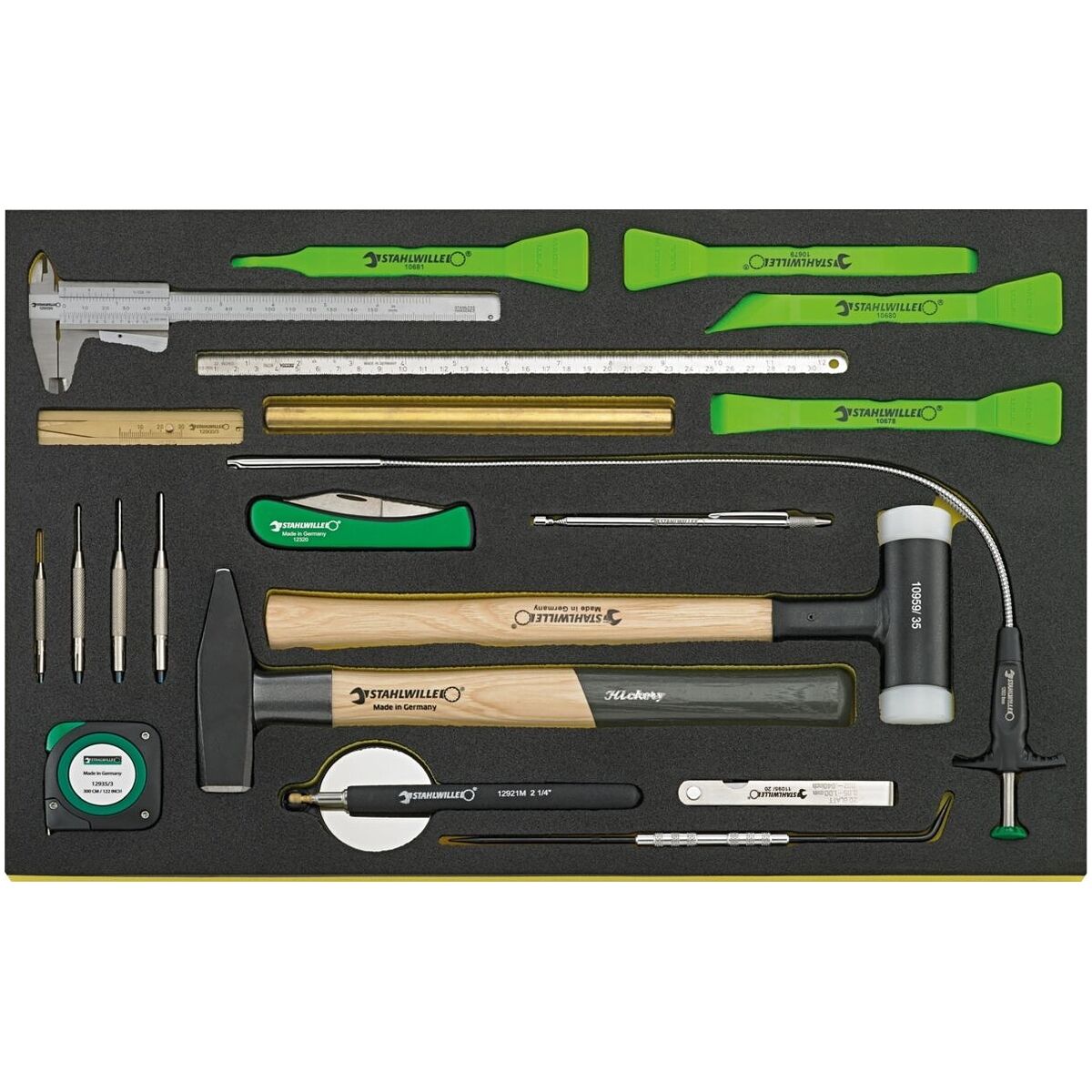

96830888
  • 4 Pin punch No. 109: Ø 1.4; 2.8; 3.4; 3.9 mm
  • 1 locksmith’s hammer No. 10961: 500g
  • 1 soft-face mallet No. 10959: Ø 35mm
  • 1 precision feeler gauge, 20 sheets No. 11095: 0.05-1 mm
  • 4 plastic scrapers No. 10678: medium blade, No. 10679: narrow blade, No. 10680: bevelled blade, No. 10681: pointed blade
  • 1 cable knife No. 12320: Blade length: 90 mm
  • 1 roller tape measure No. 12935/3: L. 3 m
  • 1 scriber No. 12321: L. 250 mm
  • 1 brass mandrel No. 12495: L. 200 mm
  • 1 magnetic lifter No. 12601: 500g
  • 1 Calipers No. 12900: Measuring range: 150 mm/6″
  • 1 tyre tread caliper No. 12900/3: Measuring range: 0-30 mm
  • 1 telescopic mirror No. 12921M.: Ø 57mm
  • 1 claw gripper No. 12922: Ø 6mm
  • 1 steel scale No. 13110: L. 300 mm
