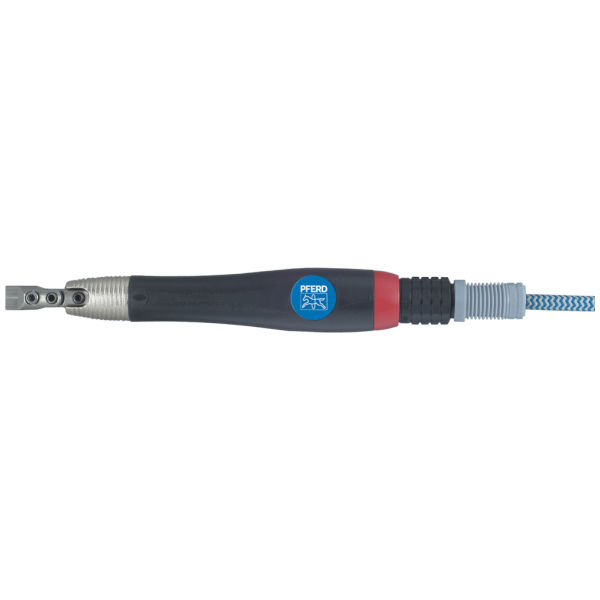

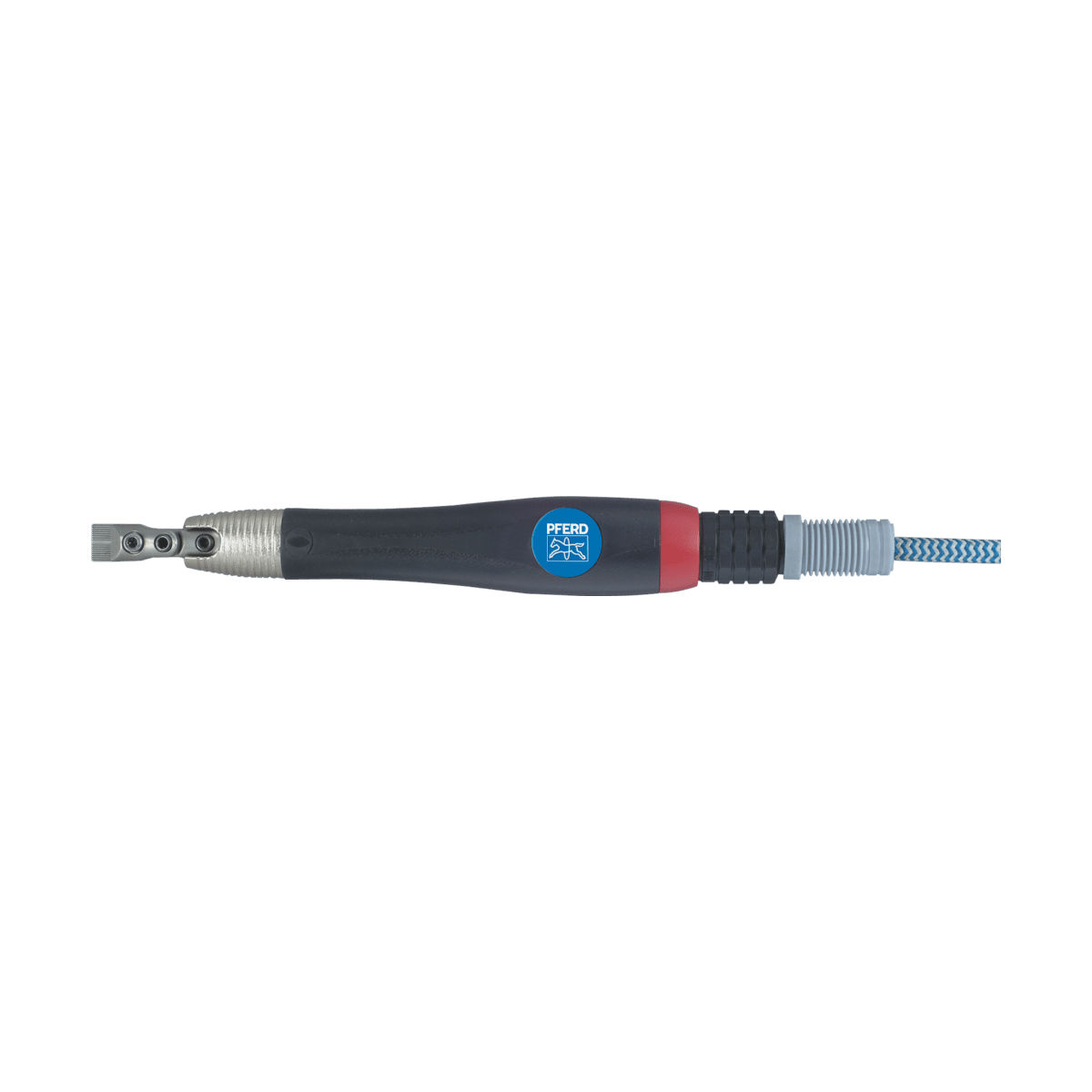

air-powered filing machine PFGA 07/220 frequency: 22,000 strokes/min.
Article no.: 4007220657638
Article code:
Please note the delivery time and limited advice:
We order this item for you directly from the manufacturer, as it is not part of our main range and is therefore not in stock with us.
InfoProduct details
Technical Data
| Power supply | Pneumatic | |
| Type of product | Straight die grinder |
Identification & Classification
| Article number | 4007220657638 | |
| EAN / GTIN | 4007220657638 | |
| Manufacturer number | 80600200 | |
| L-Number | L51050 923 | |
| Manufacturer/responsible person | August Rueggeberg GmbH & Co. KG, Hauptstraße 13, 51709 MARIENHEIDE, Germany, www.pferd.com |
Description
Description:
Filing machine for mechanical machining processes for filing, grinding and polishing with smooth running and high precision. The exhaust air flow of the air grinder is at the back. Air grinder with ring throttle version. It must only be used without oil. Tool mountings: Round shank dia. 3 mm slot mounting (L x W x D) 10 x 1.5 x 10 mm for ceramic fibre files. 0.32 m exhaust hose and 1.5 m air supply hose with 1/4″ female threaded connection and threaded quick coupling (STGA), 1 key, arbor.
Feature:
- Operating pressure: 6.3 bar
- Throttle type: Ring
- Width, metric: 28 mm
- Air consumption, at idle: 0.05 m³/min
- Air consumption, under load: 0.03 m³/min
- Length, metric: 220 mm
- Net weight: 0.18 kg
- Air supply hose internal dia.: 4 mm
- Exhaust direction: rear
- Frequency, from: 22000 Hub/min
- Height: 28 mm
- Stroke length: 0.7 mm
Advantage:
- No dust turbulence on the workpiece side.
- The drive is suitable for files with a round shank.
- The drive with a ring throttle can be used for continuous use.
- Light and easy to handle.
Note:
- Using oil with the compressed air can damage the motor.
