GARANT INOX solid carbide milling cutter with chip dividers HPC / TPC, AlTiN, ⌀ e8 DC: 6mm
Article no.: 202956 6
Article code:
New product
- Tool material: Solid carbide
- Standard: Manufacturer’s standard
- Type: N
- Tolerance nominal ⌀: e8
- No. of teeth Z: 4
Product details

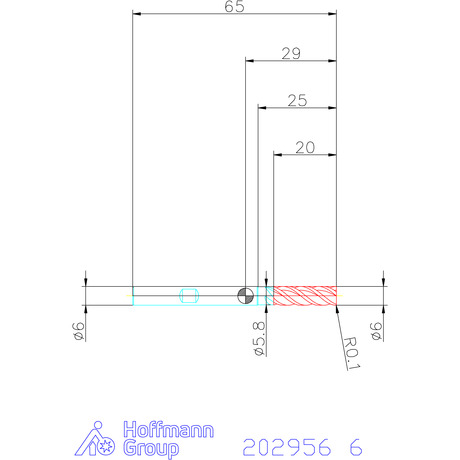

Technical Data
| Cutting edge ⌀ DC | 6 mm | |
| Coating | AlTiN | |
| Tool material | Solid carbide | |
| Standard | Manufacturer’s standard | |
| Type | N | |
| Tolerance nominal ⌀ | e8 | |
| No. of teeth Z | 4 | |
| Helix angle | 40 degrees | |
| Spacing of the cutters | unequal spacing | |
| Direction of infeed | horizontal, oblique and vertical | |
| Cutting width ae for milling operation | 0.3×D for side milling; 0.12×D | |
| Shank | DIN 6535 HB to h6 | |
| Through-coolant | no | |
| Machining strategy | HPC; TPC | |
| Flute length Lc | 20 mm | |
| Overhang length L1 incl. recess | 25 mm | |
| Recess ⌀ D1 | 5.8 mm | |
| Overall length L | 65 mm | |
| Shank ⌀ Ds | 6 mm | |
| Number of chip separators | 2 | |
| Shank form | HB | |
| Corner rounding rv | 0.1 mm | |
| Feed fz for side milling in INOX > 900 N/mm2 | 0.032 mm | |
| Colour ring | blue | |
| Type of product | End / face mill |
Identification & Classification
| Article number | 202956 6 | |
| EAN / GTIN | 4069515039710 | |
| Manufacturer number | 202956 6 | |
| Manufacturer/responsible person | Hoffmann Supply Chain GmbH & Co. KG, Poststraße 15, 90471 Nürnberg, Germany, www.hoffmann-group.com |
Application Table
P
210
P
190
P
170
P
150
P
120
H
110
H
75
M
95
M
85
Description
Version:
Milling cutter with optimised geometry and modern high-performance coating for optimum metal removal rate in various stainless steels. Can also be used in duplex materials. Dimensions similar to DIN 6527.
Note:
With chip divider for controlled chip breaking. For reliable working in automated production environments thanks to reliable chip evacuation from the component. Cutting data for TPC machining in the ToolScout.
